Adjustable Antistatic PCB Magazine Rack ESD SMT PCB Rack
Product Details:
| Place of Origin: | CN |
| Brand Name: | Herzesd |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | USD 35-50/ set |
|
Detail Information |
|||
| Features: | Easy To Assemble, Lightweight, Durable | Adjust Type: | Screw/ Gear Track |
|---|---|---|---|
| Warranty: | 1 Year | Compatibility: | ESD-Safe Workstations |
| Package Includes: | 1 X Magazine Rack | High Temperature Resistance: | 80℃,120℃ And 200℃ Above Are Available |
| Assembly Required: | Yes | Usage: | Electrostatic Discharge |
| Surface Resistance: | 10e^4-10^6 Ohm | ||
| Highlight: | ESD SMT PCB Magazine Rack,Adjustable PCB Magazine Rack,Antistatic PCB Magazine Rack |
||
Product Description

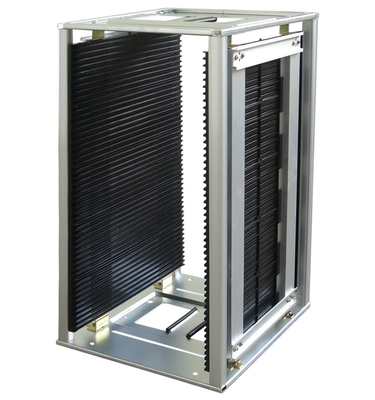

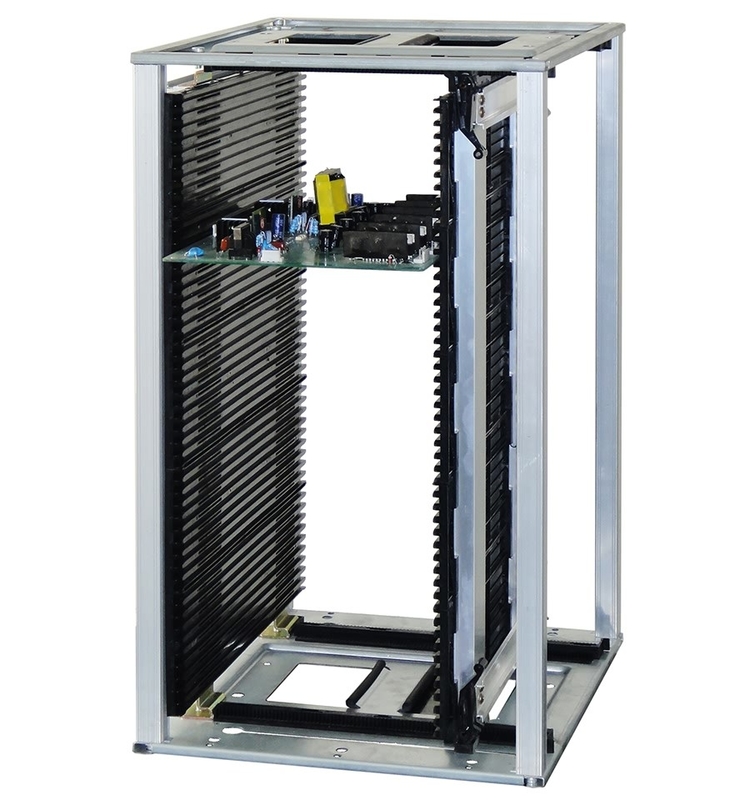

ESD Magazine Rack:
-
Anti Static ESD magazine rack, ESD PCB rack are designed for the manufacture,assembly, storage and transfer the PCBs.
-
It offers excellent protection against ESD when transferring PCB boards.
-
It is available in various of sizes and adjustment types
1.The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer.
2.Adjustable through screws,gear adjustment.
3.Common type (60°C) and heat-resistance type(120°C ,160~200°C) are available.
4.Surface resistance: 104~106 ohm.
5.Base: P-Conductive PS, M-Zincification Iron
6.Adjustment: G-Gear track adjustment, S-Screw adjustment
7.Max tolerant temperature: 60°C,120°C,160~200°C different material
8.PCB slots:The number of the SMT magazine rack Can accommodate PCBs
Size Chart:
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots | Weight (KG) |
| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |
| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |
| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 5 |
| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |
| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw / gear track | 80℃/120℃ | 50 | 10.5 |
| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw / gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw / gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw / gear track | 80℃ | 50 | 6 |
