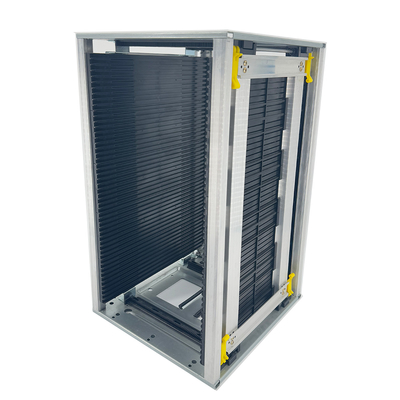

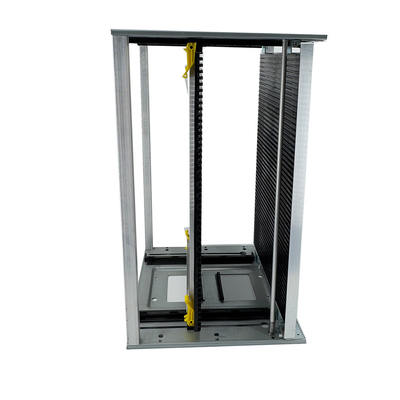

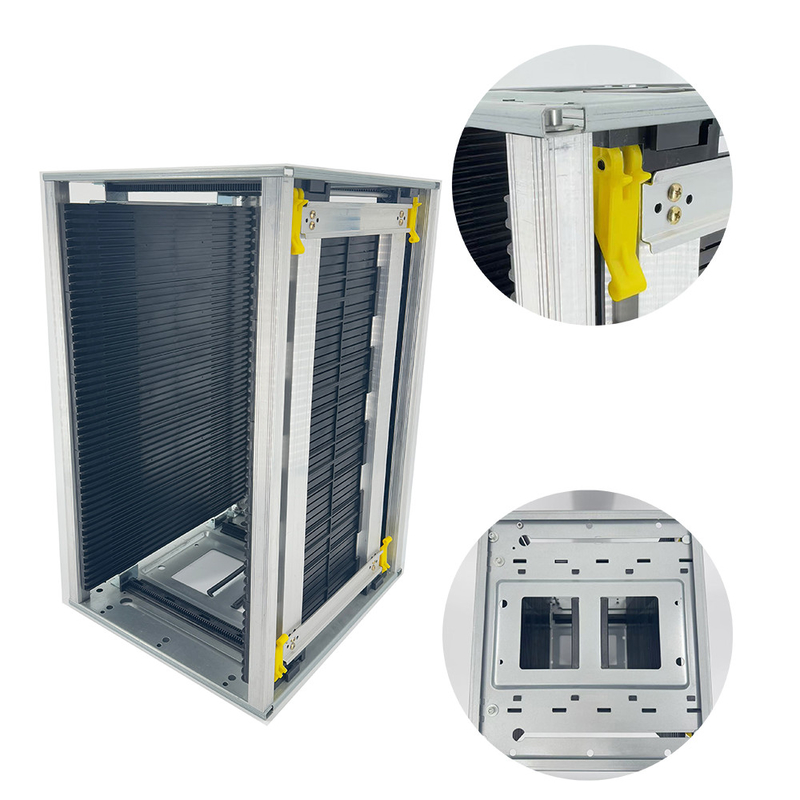

ESD SMT Magazine Rack For PCB Plate
Product Details:
| Place of Origin: | CN |
| Brand Name: | Herzesd |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | USD 35-50/ set |
|
Detail Information |
|||
| Features: | Easy To Assemble, Lightweight, Durable | Adjust Type: | Screw/ Gear Track |
|---|---|---|---|
| Warranty: | 1 Year | Compatibility: | ESD-Safe Workstations |
| Package Includes: | 1 X Magazine Rack | High Temperature Resistance: | 80℃,120℃ And 200℃ Above Are Available |
| Assembly Required: | Yes | Usage: | Electrostatic Discharge |
| Highlight: | PCB Plate ESD SMT Magazine Rack,PCB Plate Magazine Rack,ESD SMT Magazine Rack |
||
Product Description
Anti-Static PCB Magazine for Automated Assembly
This PCB magazine is crafted from volume-conductive polypropylene and reinforced with a durable metal frame, making it an essential tool for transporting PCBs in automated assembly lines. Its anti-static properties ensure the safe handling of sensitive electronic components, while the robust construction guarantees long-term durability. Ideal for production, storage, and transportation, this magazine is designed to withstand the rigors of industrial environments.
Size Chart:
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots | Weight (KG) |
| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |
| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |
| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 5 |
| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |
| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw / gear track | 80℃/120℃ | 50 | 10.5 |
| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw / gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw / gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw / gear track | 80℃ | 50 | 6 |
Product Description: SMT ESD PCB Magazine Rack
EQUIPMENT AND PRODUCTS FOR THE ESD PRODUCTION LINE
PCB Magazine
ESD PCB Magazine Rack
SMT PCB Magazine Rack
SMT ESD PCB Magazine
ESD SMT PCB Magazine Racks:
A PCB Magazine or PCB Rack is made of volume conductive polypropyleneand metalwhich is used to transport the PCB boards for automated assembly lines
1.The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer.
2.Adjustable through screws,gear adjustment.
3.Common type (60°C) and heat-resistance type(120°C ,160~200°C) are available.
4.Surface resistance: 104~106 ohm.
5.Base: P-Conductive PS, M-Zincification Iron
6.Adjustment: G-Gear track adjustment, S-Screw adjustment
7.Max tolerant temperature: 60°C,120°C,160~200°C different material 8.PCB slots:The number of the SMT magazine rack Can accommodate PCBs
