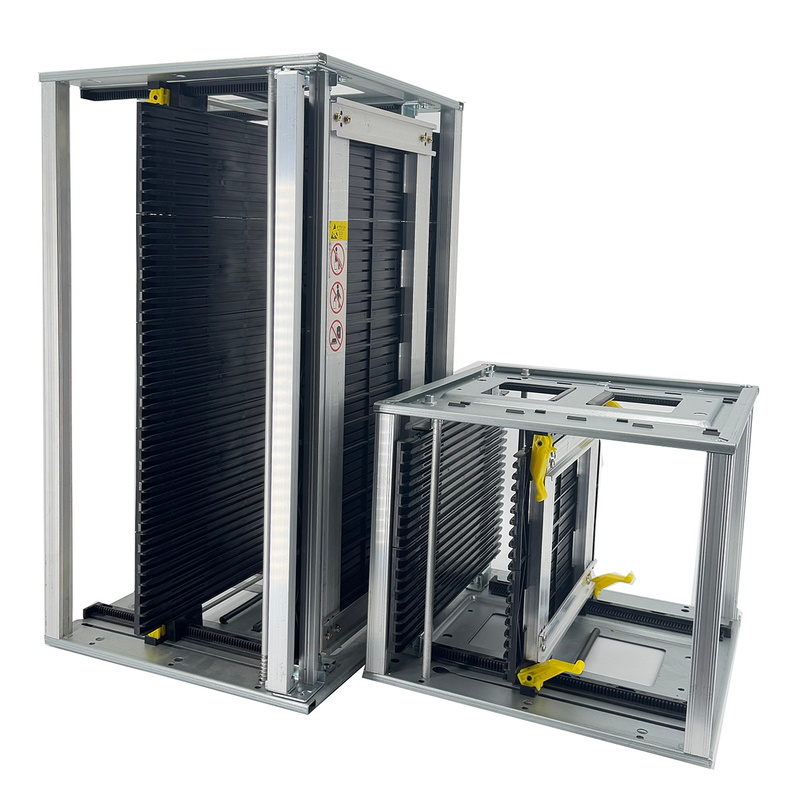

SMT Antistatic ESD Magazine Rack Anti Static PCB Storage Cart PCB RACK
Product Details:
| Place of Origin: | CN |
| Brand Name: | Herzesd |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | USD 35-50/ set |
|
Detail Information |
|||
| Features: | Easy To Assemble, Lightweight, Durable | Adjust Type: | Screw/ Gear Track |
|---|---|---|---|
| Warranty: | 1 Year | Compatibility: | ESD-Safe Workstations |
| Package Includes: | 1 X Magazine Rack | High Temperature Resistance: | 80℃,120℃ And 200℃ Above Are Available |
| Assembly Required: | Yes | Usage: | Electrostatic Discharge |
| Highlight: | Antistatic ESD Magazine Rack,PCB RACK ESD Magazine Rack,PCB Storage Cart ESD Magazine Rack |
||
Product Description

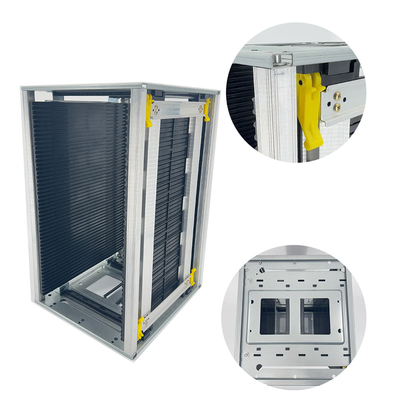

Anti-Static PCB Rack for Electronics Manufacturing
Featuring a volume-conductive polypropylene body and a metal frame, this PCB rack is built to meet the demands of electronics manufacturing. Its anti-static properties safeguard PCBs from damage during production and transportation, while the sturdy design ensures longevity. This rack is an indispensable tool for maintaining the quality and efficiency of automated assembly processes.
Size Chart:
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots | Weight (KG) |
| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |
| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |
| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 5 |
| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |
| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw / gear track | 80℃/120℃ | 50 | 10.5 |
| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw / gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw / gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw / gear track | 80℃ | 50 | 6 |
Product Description: SMT ESD PCB Magazine Rack
EQUIPMENT AND PRODUCTS FOR THE ESD PRODUCTION LINE

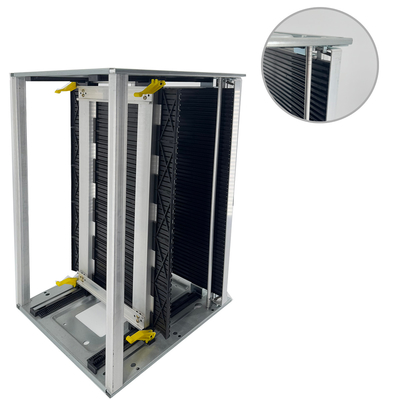

PCB Magazine
ESD PCB Magazine Rack
SMT PCB Magazine Rack
SMT ESD PCB Magazine
ESD SMT PCB Magazine Racks:
A PCB Magazine or PCB Rack is made of volume conductive polypropyleneand metalwhich is used to transport the PCB boards for automated assembly lines
1.The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer.
2.Adjustable through screws,gear adjustment.
3.Common type (60°C) and heat-resistance type(120°C ,160~200°C) are available.
4.Surface resistance: 104~106 ohm.
5.Base: P-Conductive PS, M-Zincification Iron
6.Adjustment: G-Gear track adjustment, S-Screw adjustment
7.Max tolerant temperature: 60°C,120°C,160~200°C different material 8.PCB slots:The number of the SMT magazine rack Can accommodate PCBs
