355*320*563mm Handle Type Metal ESD PCB Magazine Rack For SMT And PCB Assembly
Product Details:
| Place of Origin: | CN |
| Brand Name: | HERZESD |
| Model Number: | HZ-2604 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD 20-55/ set |
| Packaging Details: | Samples with Carton box/ Bulk order with Pallet |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 1000 units per week |
|
Detail Information |
|||
| Contour Size: | (L×W×H)mm: 355*320*563 | Storage Slot: | 50pcs Of Plates Can Be Stored |
|---|---|---|---|
| The Specification Of PCB Plates: | 355×(50－250)mm | Guide Slot Of Side Plate: | Depth 3mm, Width 5.5mm, Pitch 10mm |
| Material: | Top And Bottom Base Are Plastic Base | Fix Method: | Gear Track Adjustable |
| Side Plate: | Five Pieces Assembled | Weight: | 4.5KG |
| Highlight: | SMT ESD Magazine Rack,Handle Type ESD Magazine Rack,PCB Assembly ESD Magazine Rack |
||
Product Description
ESD PCB Magazine Rack

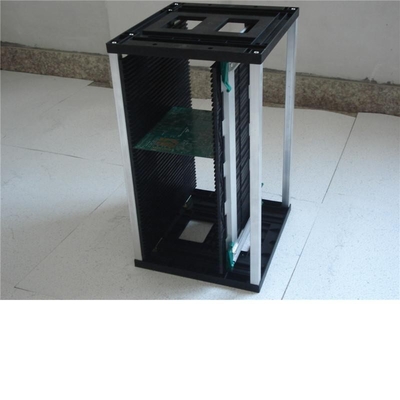

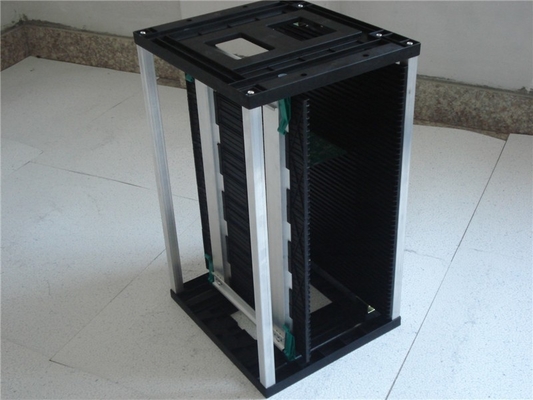

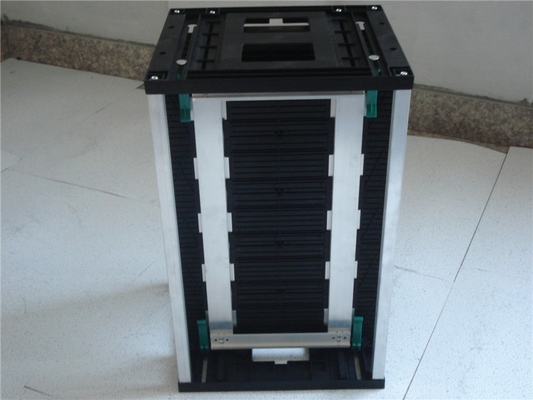

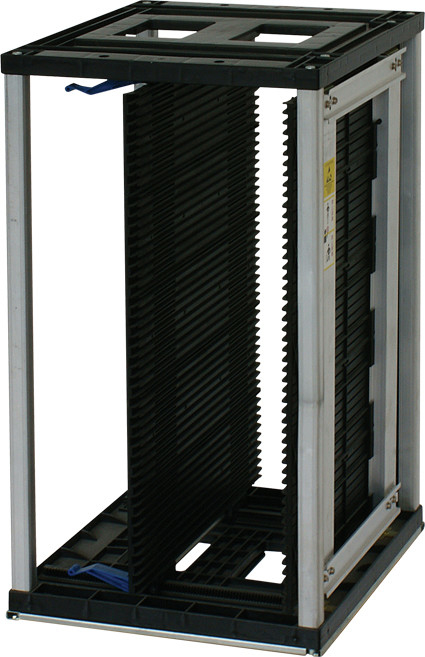

355*320*563mm Handle Type Metal ESD PCB Magazine Rack for SMT and PCB Assembly
A PCB Magazine Rack is constructed from volume-conductive polypropylene and metal, designed specifically for transporting PCB boards in automated assembly lines.
These antistatic PCB magazine racks are ideal for the production, storage, and transportation of PCBs.
With a robust sidewall and metal frame, they offer exceptional durability and long-lasting performance.
Rack & Pinion System: Enables smooth and precise width adjustment for various PCB sizes.
ESD-Safe Card Guides: Equipped with 50 slots to ensure secure and static-safe handling of PCBs.
Heat-Resistant: Card guides can withstand board temperatures up to 200°C, making them suitable for high-temperature processes.
Universal Compatibility: Designed to be compatible with all major equipment brands.
Product Description
Description: HZ-2603
Weight: 5.0KG
Customization
Different size available, please refer below
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots | Weight (KG) |
| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |
| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |
| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw/gear track | 80℃/120℃/200℃ | 50 | 5 |
| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw/gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |
| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw/gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw/gear track | 80℃/120℃ | 50 | 10.5 |
| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw/gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw/gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw/gear track | 80℃ | 50 | 6 |
Company Profile
Shanghai Herzesd Industry Co., Ltd
Specialized range of ESD products including anti-static equipment, ESD Work Station Accessories, Safe Packaging Materials, ESD Control Materials, etc.
Packaging & Shipping
ESD Magazine Rack will be packaged in a cardboard box with foam cushioning to ensure safety during transit.
The box will be marked with the name of the product, shipping address, and other relevant shipping information.
The package will be shipped to the customer’s address via a reliable courier service.
FAQ
Q:1. Why do you need ESD protection for your production line?
♦ Electronic Components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements that can be destroyed or damaged if the permitted levels of current or impact energy are exceeded.
♦ As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements. This type of construction element is mostly damaged through human mishandling. A human being can charge several thousands of volts just by walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level' of many ESD components.
♦ Before buying or implementing ESD-safe products one needs to implement an ESD-safe procedure according to the ESD standards IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
