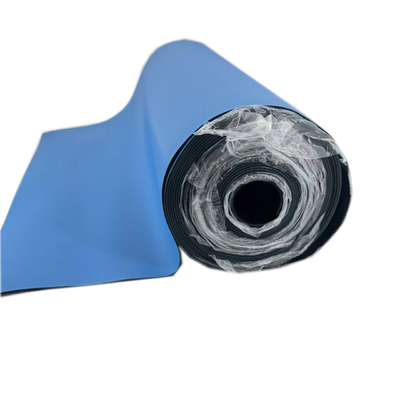

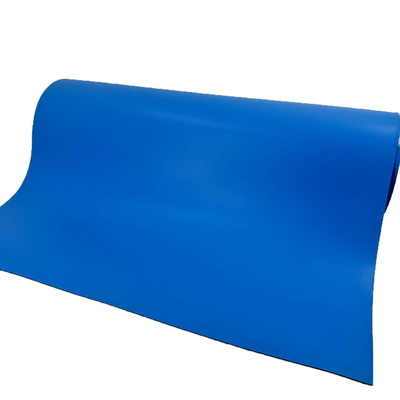

ESD Mat Anti Static Rubber Table Mat Premium Textured ESD Bench Matting
Product Details:
| Place of Origin: | CN |
| Brand Name: | Herzesd |
| Model Number: | HZ-30617 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 - 999 Square Meters |
|---|---|
| Price: | 7-15USD/Square Meters |

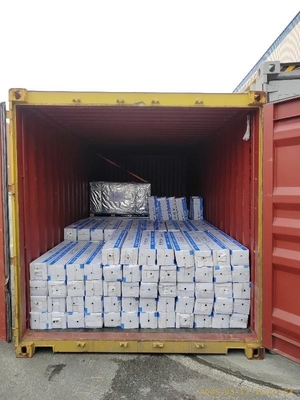

| Packaging Details: | Carton or pallet |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 1000 Square Meter/Square Meters per Day |
|
Detail Information |
|||
| Product Name: | ESD Table Mat/Anti Static Rubber Mat | Processing Service: | Cutting |
|---|---|---|---|
| Color: | Green, Gray, Blue Or Customized | Thickness: | 1.8mm, 2mm, 3mm |
| Material: | Rubber | Surface Resistance: | ≤10e6ohm |
| Normal Size: | 1m*10m; 1.2m*10m | Surface: | Matt/Glossy |
| Volume Resistance: | 10e7-10e10 Ohm·cm | Package: | Carbon Box/Pallet |
| Highlight: | Anti Static ESD Mat,ESD Bench Matting,Premium Textured ESD Mat |
||
Product Description

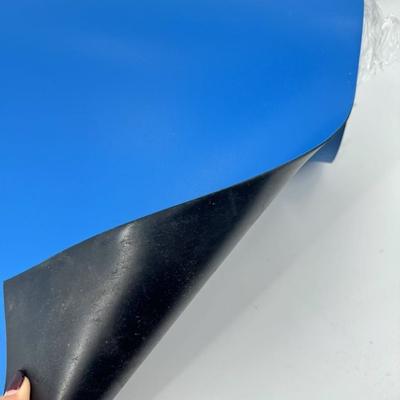

This Antistatic matting is a 2 layered, textured antistatic bench matting, designed for use on benches. The surface of this Antistatic bench mat is designed with a reflection breaking finish to improve operator comfort and reduce glare. The natural resilience of rubber makes this mat extremely hard wearing and resistant to chemical agents normally used for maintenance. This Antistatic Bench Matting resists most oils and is heat resistant to most soldering debris and hot metal parts. It features a textured surface finish that reduces glare and improves operator comfort, and it prevents the sliding of delicate components thanks to its excellent friction coefficient.
| Model | HZ-30617 |
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/ Blue |
| Surface | Matt/Glossy |

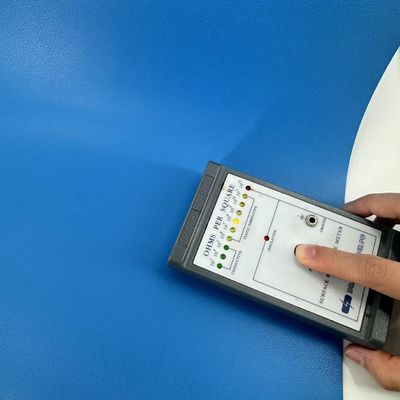

| Surface resistance | ≤10e6ohm |
| Volume Resistance | 10e7-10e10 ohm·cm |
| Feature | ||
| Static dissipation layer | Surface resistance | 107-109ohm |
| Friction electrostatic charge | <100V | |

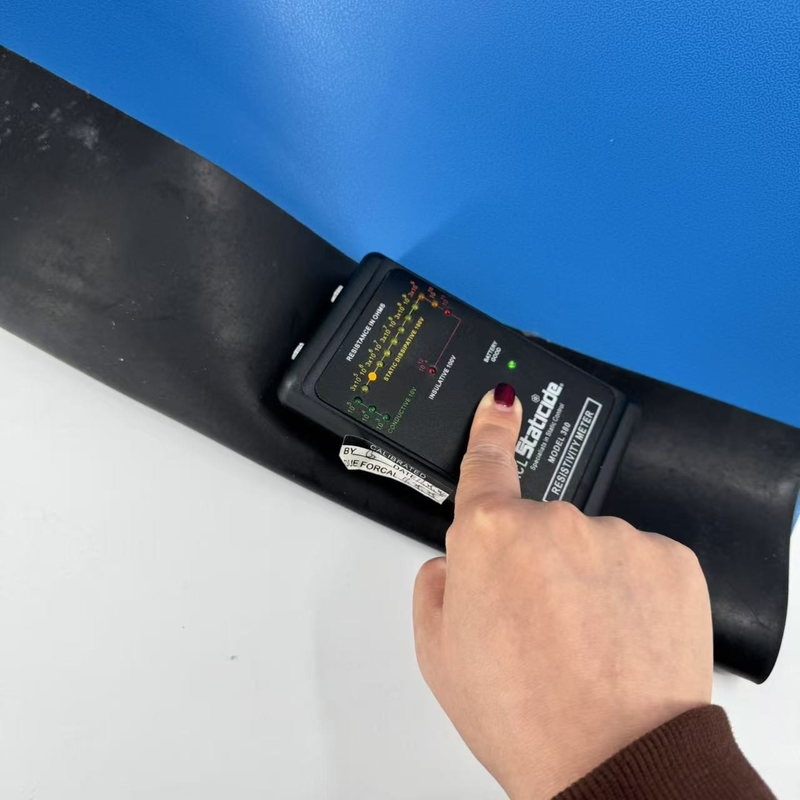

| Conductive layer | Surface resistance | ≤106ohm |
| Friction electrostatic charge | <50V | |
| Volume Resistance | 107-1010 ohm·cm | |
The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence. Our products showcase a fine amalgamation of excellence, quality, innovation, and technology. A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories. These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.
FAQ
Q:1, Why you need ESD protect for your production line?
♦ Electronic Components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements which can be
destroyed or damaged if the permitted levels of current or impact energy are exceeded.
♦ As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements. This type of
construction element is mostly damaged through human mishandling. A human being can charge several thousands of volts just by
walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level'
of many ESD components.
♦ Before buying or implementing ESD-safe products one needs to implement an ESD-safe procedure according to the ESD standards
IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.

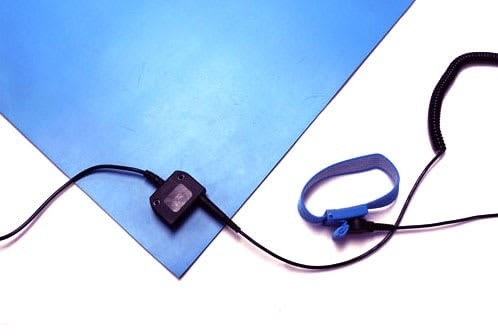

♦ Besides our Anti-Static conductive ESD Workstations we offer an extensive range of
Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear,Antistatic ESD
Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials, Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes, ESD Test & Measuring Equipment, ESD Trainings, ESD Support & ESD Audits.
